Packaging

Chiorino wide range of conveyor and timing belts meets any requirements for a safe and hygienic packaging of any type of product. The Chiorino offer includes conveyor belts for check-weighers, vertical form-fill sealers, accumulation and inclined belts, packaging machines with thermo-retractable films, labelling machines, capping machines.

Library

FXD™ X-Ray & Metal detectable food belts

FXD™ X-Ray & Metal detectable food belts

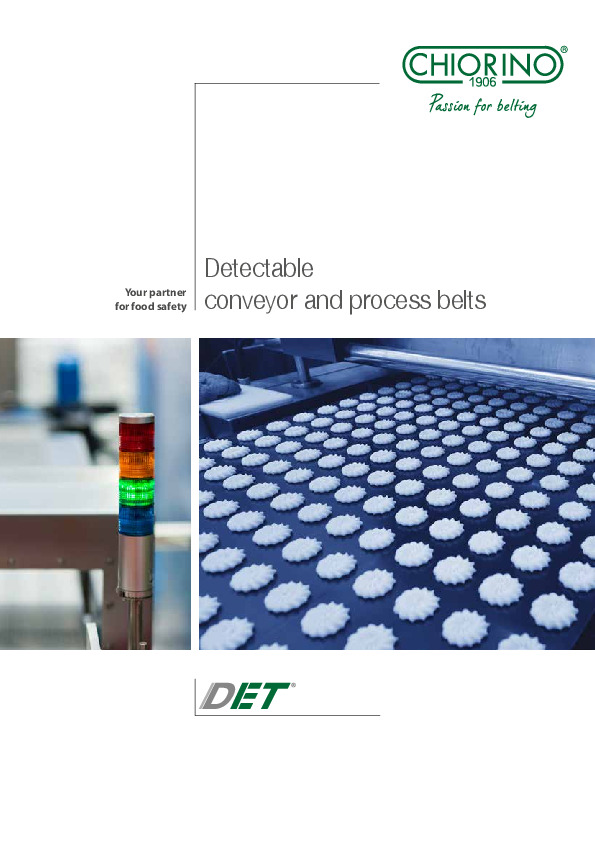

Food - DET™ line - Detectable products

Food - DET™ line - Detectable products

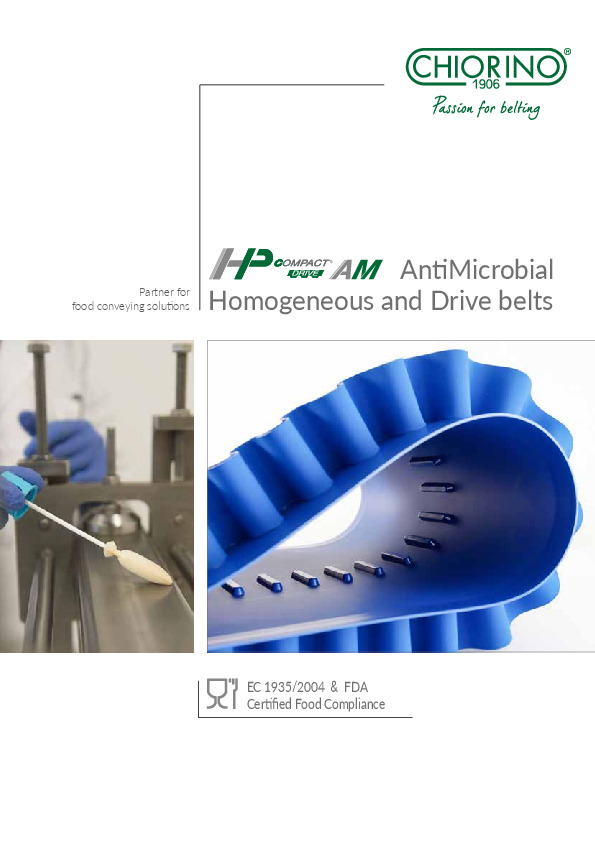

Food - HP Compact Drive® Antimicrobial Homogeneous belts

Food - HP Compact Drive® Antimicrobial Homogeneous belts

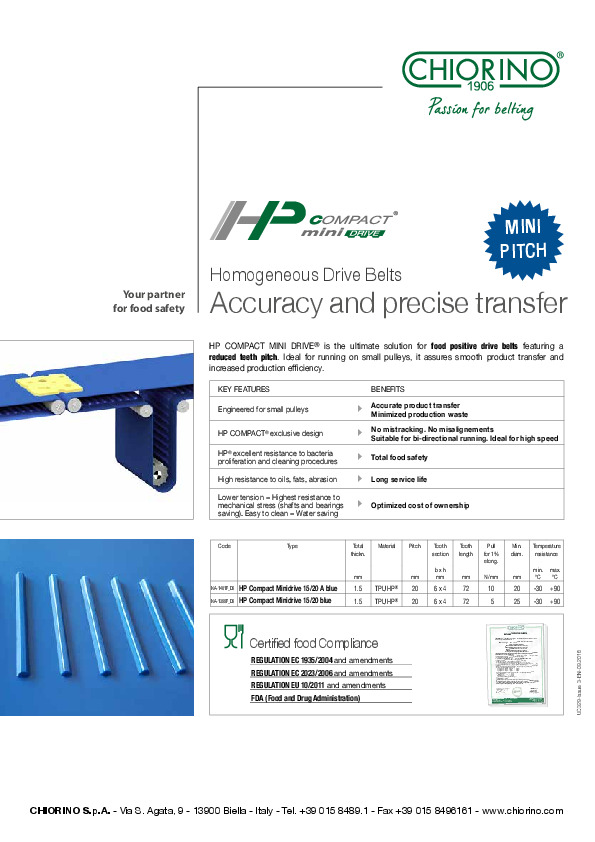

HP COMPACT MINI DRIVE Homogeneous Belts for Mini Pitch

HP COMPACT MINI DRIVE Homogeneous Belts for Mini Pitch

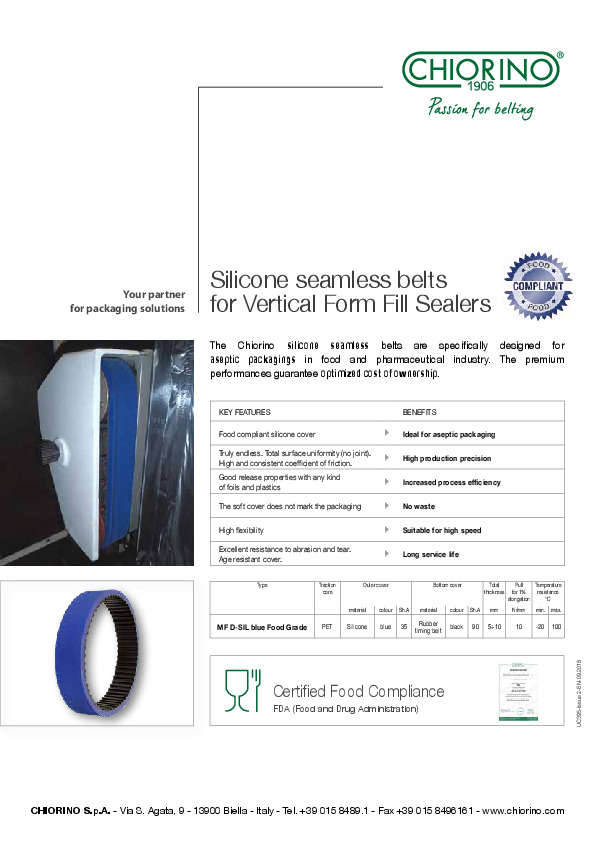

Packaging - Vertical form fill-seal - Food Grade Seamless belts

Packaging - Vertical form fill-seal - Food Grade Seamless belts

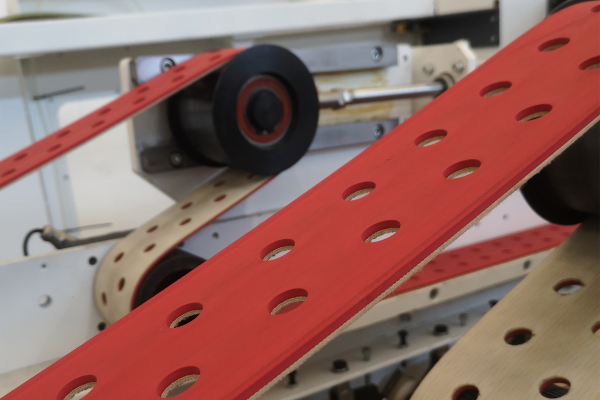

Packaging - Vertical form fill-seal - MF™ Seamless belts

Packaging - Vertical form fill-seal - MF™ Seamless belts

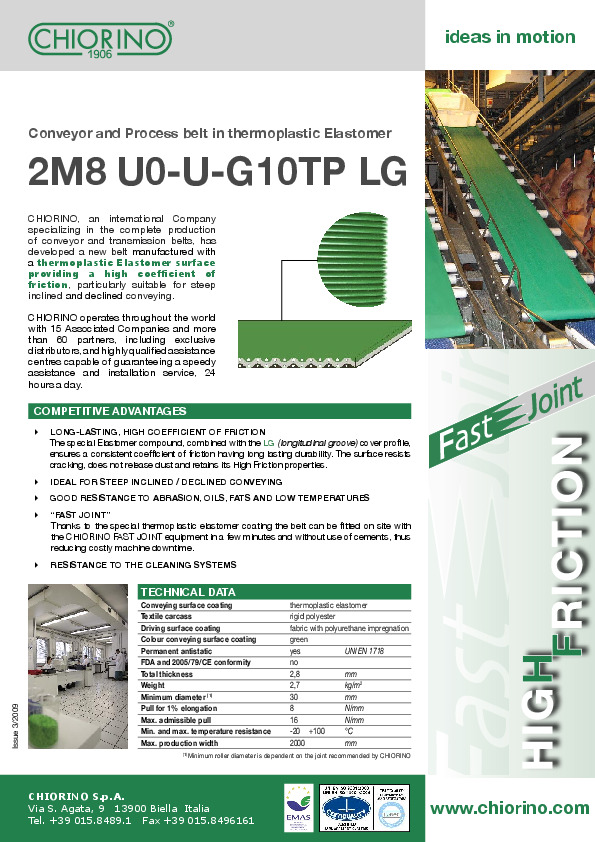

Packaging - High friction thermoplastic conveyor belt 2M8 U0-U-G10TP LG

Packaging - High friction thermoplastic conveyor belt 2M8 U0-U-G10TP LG

Video

Products

Conveyor Belts
Code Type Material Thickness [mm] Traction 1% [N/mm] Pdf
NA785 EL2-U10 HP blue Polyurethane (TPU) - HP® system 1.00 2.00
NA790 EL2-U10 HP W Polyurethane (TPU) - HP® system 1.00 2.00
NA1089 EL3-U15 HP PN blue Polyurethane (TPU) - HP® system 1.50 3.00
NA899 EL4-U20 HP blue Polyurethane (TPU) - HP® system 2.00 4.00
NA947 1M5 U0-U2 HP VL blue A Polyurethane (TPU) - HP® system 0.70 5.00
NA946 1M5 U0-U2 HP W S A Polyurethane (TPU) - HP® system 0.70 5.00
NA1191 1M5 U3-U3 HP FL/FM W Polyurethane (TPU) - HP® system 1.40 5.00
NA868 1M12 U0-U3 HP PN N S Polyurethane (TPU) - HP® system 1.50 8.00
NA1087 2M5 U0-U15 HP ST W A Polyurethane (TPU) - HP® system 3.50 5.00
NA716 2M5 U0-U0 HP A Fabric polyurethane (TPU) impregn. - HP® system 1.00 6.00
NA1057 2M5 U0-U0 HP blue A Fabric polyurethane (TPU) impregn. - HP® system 1.00 6.00
NA789 2M5 U0-U2 HP W A Polyurethane (TPU) - HP® system 1.30 6.00
NA842 2M5 U0-U2 HP PN W A Polyurethane (TPU) - HP® system 1.60 6.00
NA913 2M5 U0-U2 HP W S A Polyurethane (TPU) - HP® system 1.30 6.00
NA567 2M5 U0-U2 HP W Polyurethane (TPU) - HP® system 1.30 6.00
NA949 1M5 U0-U2 HP D W A Polyurethane (TPU) - HP® system 0.70 5.00
NA1235 1M5 U0-U2 HP D LF W A Polyurethane (TPU) - HP® system 0.90 5.00
NA1160 2M5 U0-U2 HP D W A Polyurethane (TPU) - HP® system 1.30 6.00
NA1234 2M5 U0-U2 HP D LF W A Polyurethane (TPU) - HP® system 1.30 6.00
NA1669 EL2-U10 HP blue AM Polyurethane (TPU) - HP® system 1.00 2.00
NA1758 EL3-U15 HP PN blue AM Polyurethane (TPU) - HP® system 1.50 3.00
NA1688 EL3-U15 HP blue AM Polyurethane (TPU) - HP® system 1.50 3.00
NA1665 1M5 U0-U2 HP VL blue A AM Polyurethane (TPU) - HP® system 0.70 5.00
NA1667 1M5 U0-U2 HP blue A AM Polyurethane (TPU) - HP® system 0.70 5.00
NA1738 1M5 U3-U3 HP FL/FM W AM Polyurethane (TPU) - HP® system 1.40 5.00
NA1717 1DM8 U0-U2 HP W A AM Polyurethane (TPU) - HP® system 1.35 8.00
NA1760 2M5 U0-U0 HP blue A AM Fabric polyurethane (TPU) impregn. - HP® system 1.00 6.00
NA1747 2M5 U0-U0 HP A AM Fabric polyurethane (TPU) impregn. - HP® system 1.00 6.00
NA1748 2M5 U0-U2 HP W S A AM Polyurethane (TPU) - HP® system 1.30 6.00
NA1770 2M5 U0-U2 HP W A AM Polyurethane (TPU) - HP® system 1.30 6.00
NA1775 2M5 U0-U2 HP W AM Polyurethane (TPU) - HP® system 1.30 6.00
NA1724A HP Compact 15 blue AM Polyurethane (TPU) - HP® system 1.50 5.00
NA1724F_D6 HP Compact Minidrive 15/20 blue AM Polyurethane (TPU) - HP® system 1.50 5.00
NA1590 1M5 U0-U2 FXD Polyurethane (TPU) 0.75 5.00
NA1598 1M5 U0-U2 FXD VL Polyurethane (TPU) 0.75 5.00
NA1714 1M5 U0-U2 FXD AM Polyurethane (TPU) 0.75 5.00
NA1754 1M5 U0-U2 FXD VL AM Polyurethane (TPU) 0.75 5.00
NA1606 1T6 U0-U2 FXD Polyurethane (TPU) 0.80 6.00
NA1591 2M5 U0-U2 FXD Polyurethane (TPU) 1.30 6.00
NA1599 2M5 U0-U2 FXD VL Polyurethane (TPU) 1.30 6.00
NA1753 2M5 U0-U2 FXD AM Polyurethane (TPU) 1.30 6.00
NA1755 2M5 U0-U2 FXD VL AM Polyurethane (TPU) 1.30 6.00
NA96 EL2-U10 FL Polyurethane (TPU) 1.00 2.00
NA97 EL3-U15 FL Polyurethane (TPU) 1.50 3.00
NA738 1M5 U0-U2 W A LF VL Polyurethane (TPU) 0.70 5.00
NA945 1M5 U0-U2 W A Polyurethane (TPU) 0.70 5.00
NA959 1M5 U0-U2 A Polyurethane (TPU) 0.70 5.00
NA99 1M6 U0-U5 FL Polyurethane (TPU) 1.00 6.00
NA549 2M5 U0-U1 W S A Polyurethane (TPU) 1.30 6.00
NA1069 2M5 U0-U1 blue S A Polyurethane (TPU) 1.30 6.00
NA696 2M5 U0-U2 LF W A Polyurethane (TPU) 1.30 6.00
NA581 2M5 U0-U2 A Polyurethane (TPU) 1.20 6.00
NA170 2M5 U0-U2 W A Polyurethane (TPU) 1.30 6.00
NA1231 2M5 U0-U2 LB A Polyurethane (TPU) 1.30 6.00
NA1264 2M5 U0-U2 W A SP Polyurethane (TPU) 1.30 6.00
NA1464 2M5 U0-U2 N A XW-P Polyurethane (TPU) 1.30 6.00
NA160 2T8 U0-0 Polyester (PET) fabric 1.30 8.00
NA352 2M8 U0-U0 Fabric with polyurethane (TPU) impregnation 1.30 8.00
NA363 2M8 U0-U0 GR Fabric with polyurethane (TPU) impregnation 1.30 8.00
NA1344 2M8 U0-U0 SP Fabric with polyurethane (TPU) impregnation 1.30 8.00
NA1347 2M8 U0-U0 GR SP Fabric with polyurethane (TPU) impregnation 1.30 8.00
NA1499 2M8 U0-U0 GR XW Fabric with polyurethane (TPU) impregnation 1.30 8.00
NA336 2M8 U0-U2 Polyurethane (TPU) 1.40 8.00
NA1289 2M12 U0-U2 SP Polyurethane (TPU) 1.50 8.00
NA801 2M12 U0-U3 R W A Polyurethane (TPU) 1.70 12.00
NA436 2M12 U0-V-U5 Polyurethane (TPU) 2.00 12.00
NA1253 2M12 U0-U5 TR Polyurethane (TPU) 2.00 12.00
NA1346 2M12 U0-V-U5 SP Polyurethane (TPU) 2.10 12.00
NA1010 2M12 U0-U15 LT W A Polyurethane (TPU) 6.00 12.00
NA538 3M8 U0-U3 Polyurethane (TPU) 2.20 10.00
NA1733 EL4-O15 HY W Thermoplastic Polyolefin (TPO) 1.50 4.00
NA1379 EL4-U20 blue DET Polyurethane (TPU) 2.00 4.00
NA1323 EL6-U30 blue DET Polyurethane (TPU) 3.00 6.00
NA1558 1M5 U0-U2 blue DET Polyurethane (TPU) 0.80 5.00
NA1565 2M5 U0-U0 blue DET Fabric with polyurethane (TPU) impregnation 1.00 5.00
NA1564 2M5 U0-U15 ST blue DET Polyurethane (TPU) 3.50 5.00
NA1526 2M12 U0-U15 LT blue DET Polyurethane (TPU) 6.00 12.00
NA1461F_D6 Compact Minidrive 15/20 blue DET Polyurethane (TPU) 1.50 5.00
NA1482F_D6 Compact Minidrive 15/20 A blue DET Polyurethane (TPU) 1.50 10.00
NA1176 PT1.4 EL G3-G3 SK Synthetic elastomer 1.40 2.50
NA1177 PT1.4 EL G3-G3 FL Synthetic elastomer 1.40 2.50
NA1230 PT1.2 0-G2 FL Synthetic elastomer 1.20 6.00
NA1120 PT1.5 0-G3 FL Synthetic elastomer 1.50 6.00
NA25 1M6 U0-V5 PVC 65 Sh.A (±5) 1.00 6.00
NA44 1M6 U0-V5 N PVC 70 Sh.A (±5) 1.00 6.00
NA26 1M6 V5-V5 PVC 65 Sh.A (±5) 1.80 6.00
NA49 2MT5 U0-V3 N PVC 70 Sh.A (±5) 1.80 6.00
NA1283 2MT5 U0-V5 RT N PVC 45 Sh.A (±5) 2.10 6.00
NA91 2M8 U0-V-U0 Fabric with polyurethane (TPU) impregnation 1.50 8.00
NA30 2M8 U0-V5 A PVC 65 Sh.A (±5) 2.00 8.00
NA31 2M8 U0-V5 FM PVC 65 Sh.A (±5) 2.10 8.00
NA189 2M8 U0-V5 FM N PVC 45 Sh.A (±5) 2.10 8.00
NA942 2M8 U0-V5 PS GR PVC 40 Sh.A (±5) 2.20 8.00
NA220 2M8 U0-V5 RT GR PVC 40 Sh.A (±5) 2.20 8.00
NA32 2M8 U0-V17 GP PVC 45 Sh.A (±5) 5.20 8.00
NA582 2M10 U0-V10 PVC 65 Sh.A (±5) 2.80 10.00
NA394 2M12 U0-V-U0 GR Fabric with polyurethane (TPU) impregnation 1.70 12.00
NA218 2M12 U0-V3 PVC 70 Sh.A (±5) 1.90 12.00
NA46 2M12 U0-V3 N PVC 70 Sh.A (±5) 1.90 12.00
NA401 2M12 U0-V7 LG PVC 45 Sh.A (±5) 2.40 12.00
NA33 2M12 U0-V8 RT PVC 45 Sh.A (±5) 2.30 12.00
NA34 2M12 U0-V10 A PVC 65 Sh.A (±5) 2.50 12.00
NA48 2M12 U0-V10 N PVC 70 Sh.A (±5) 2.90 12.00
NA40 2T12 U0-V10 PVC 65 Sh.A (±5) 2.50 12.00
NA36 2M12 V5-V10 PVC 65 Sh.A (±5) 3.00 12.00
NA258 2M12 U0-V10 RT PVC 65 Sh.A (±5) 2.60 12.00
NA14 2M12 U0-V15 CL W PVC 65 Sh.A (±5) 5.50 12.00
NA242 2M12 U0-V15 GPL N PVC 45 Sh.A (±5) 3.80 12.00
NA12 2M12 U0-V15 ST W PVC 65 Sh.A (±5) 3.60 12.00
NA35 2M12 U0-V20 GP PVC 45 Sh.A (±5) 5.50 12.00
NA19 2T12 U0-V20 GP W PVC 45 Sh.A (±5) 5.50 12.00
NA76 3M18 U0-V15 A PVC 65 Sh.A (±5) 4.20 18.00
NA148 3M18 U0-V15 W PVC 65 Sh.A (±5) 4.20 18.00
NA42 3T18 U0-V15 PVC 65 Sh.A (±5) 4.20 18.00
NA22 3T18 U0-V15 W PVC 65 Sh.A (±5) 4.20 18.00
NA867 1M12 U0-V5 PN FR PVC 40 Sh.A (±5) 1.80 8.00
NA1541 1M12 U0-V5 PN FR PVC 45 Sh.A (±5) 1.80 12.00
NA1467 2M5 U0-V5 PN FR PVC 45 Sh.A (±5) 1.80 5.00
NA934 2M5 U0-V5 PN FR PVC 40 Sh.A (±5) 1.90 6.00
NA1210 2T12 U0-V10 FM FR PVC 70 Sh.A (±5) 2.30 12.00
NA1465 2T12 U0-V10 FM FR PVC 75 Sh.A (±5) 2.30 12.00
NA998 2M8 U0-U-G10TP LG Thermoplastic elastomer 2.80 8.00
NA118 2M8 U0-U-G10 FH Natural elastomer 2.30 8.00
NA121 2M12 U0-G25 GP Natural elastomer 5.50 12.00
NA1133 2M8 U0-U-G5 HS FL Synthetic elastomer 2.00 8.00
NA1134 2M8 U0-U-G15 HS FL Synthetic elastomer 3.00 8.00
NA1135 2T12 U0-U-G10 HS FH Synthetic elastomer 2.20 12.00
NA1136 2T12 U0-G25 HS GP Synthetic elastomer 5.50 12.00
NA163 2T12 U0-U-G15 MF Natural elastomer 2.80 12.00
CG172 PR0-L Fabric with polyurethane (TPU) impregnation 0.90 2.00
CG218 P1-L Synthetic elastomer (NBR) 1.25 2.00
CG3 P0 Synthetic elastomer 0.90 2.00
NA133 N Fabric with polyurethane (TPU) impregnation 0.60 2.00
NA1139 NT2 HS Synthetic elastomer 2.00 3.50
NA135 N8 Fabric with polyurethane (TPU) impregnation 1.00 3.00
NA1404 NT1 HS L Synthetic elastomer 1.00 3.00
NA1138 NT1 HS Synthetic elastomer 1.20 3.00
NA1140 NT3 HS Synthetic elastomer 3.00 6.00
NA126 1M6 U0-S0 Fabric with silicone impregnation 0.60 6.00
NA127 2M8 U0-U-S0 Fabric with silicone impregnation 1.30 8.00
NA129 2MT8 S0-S0 Fabric with silicone impregnation 1.20 8.00
NA130 2MT8 S0-S2 Silicone 1.30 8.00
NA224 SILON 25 W Non-woven polyester (PET) 2.50 10.00
NA225 SILON 25 HC Non-woven polyester (PET) 2.50 10.00
NA305 SILON 40 HC Non-woven polyester (PET) 4.00 10.00
NA222 SILON 60 HC Non-woven polyester (PET) 5.50 10.00
NA223 SILON 60 NA Non-woven polyester (PET) 5.50 10.00
Power Transmission Belts
Type Material Thickness [mm] Traction Pdf
P0 Fabric with polyurethane (TPU) impregnation 0.90 2.0
PR0 Fabric with polyurethane (TPU) impregnation 1.00 3.0
P1 Fabric with polyurethane (TPU) impregnation 1.40 5.0
P2 Fabric with polyurethane (TPU) impregnation 2.10 7.5
Round Belts
Type Material Diameter [mm] Traction Pdf
RU-3 HP blue Thermoplastic polyurethane (TPU) - HP® system 3 18
RU-4 HP blue Thermoplastic polyurethane (TPU) - HP® system 4 26
RU-4 R HP blue Thermoplastic polyurethane (TPU) - HP® system 4 22
RU-5 HP blue Thermoplastic polyurethane (TPU) - HP® system 5 42
RU-6 HP blue Thermoplastic polyurethane (TPU) - HP® system 6 60
RU-6 R HP blue Thermoplastic polyurethane (TPU) - HP® system 6 60
RU-8 HP blue Thermoplastic polyurethane (TPU) - HP® system 8 110
RU-10 HP blue Thermoplastic polyurethane (TPU) - HP® system 10 150
RU-2 Thermoplastic polyurethane (TPU) 2 8
RU-3 Thermoplastic polyurethane (TPU) 3 18
RU-3 blue DET Thermoplastic polyurethane (TPU) 3 18
RU-4 Thermoplastic polyurethane (TPU) 4 30
RU-4 blue DET Thermoplastic polyurethane (TPU) 4 30
RU-5 Thermoplastic polyurethane (TPU) 5 50
RU-5 blue DET Thermoplastic polyurethane (TPU) 5 50
RU-5 R blue DET Thermoplastic polyurethane (TPU) 5 50
RU-6 Thermoplastic polyurethane (TPU) 6 70
RU-6 blue DET Thermoplastic polyurethane (TPU) 6 70
RU-7 Thermoplastic polyurethane (TPU) 7 100
RU-8 Thermoplastic polyurethane (TPU) 8 130
RU-8 blue DET Thermoplastic polyurethane (TPU) 8 130
RU-8 R blue DET Thermoplastic polyurethane (TPU) 8 130
RU-9 Thermoplastic polyurethane (TPU) 9 160
RU-10 Thermoplastic polyurethane (TPU) 10 200
RU-12 Thermoplastic polyurethane (TPU) 12 280
RU-15 Thermoplastic polyurethane (TPU) 15 440
PU A 13x8 Thermoplastic polyurethane (TPU) 45
PU L 8x5 Polyurethane (TPU)
PU Z 10x6 Polyurethane (TPU)
PU B 17x11 Polyurethane (TPU)
PU C 22x14 Polyurethane (TPU) 105
Elastomer and Silicone Sheeting
Type Material Color Hardness [Sh.A] Pdf
X-W 60 GP NR Natural elastomer (NR)/thermoplastic compound Purple red 40
X-W 60 GP SR Synthetic elastomer (NBR)/thermoplastic compound Purple red 45
X-W 70 FL NR Natural elastomer (NR)/thermoplastic compound Purple red 40
