leading belting solutions for intralogistics

Chiorino manufactures a wide range of energy-saving belting solutions for the materials handling in warehouses and distribution centres, meeting the rising requirements of reliability, efficiency, sustainability and safety of the industry.

Energy
Savings

Optimized Cost
of Ownership

Silent
Running

Production
Efficiency

Flame
Retardant

Minimized
Downtimes

processes and applications

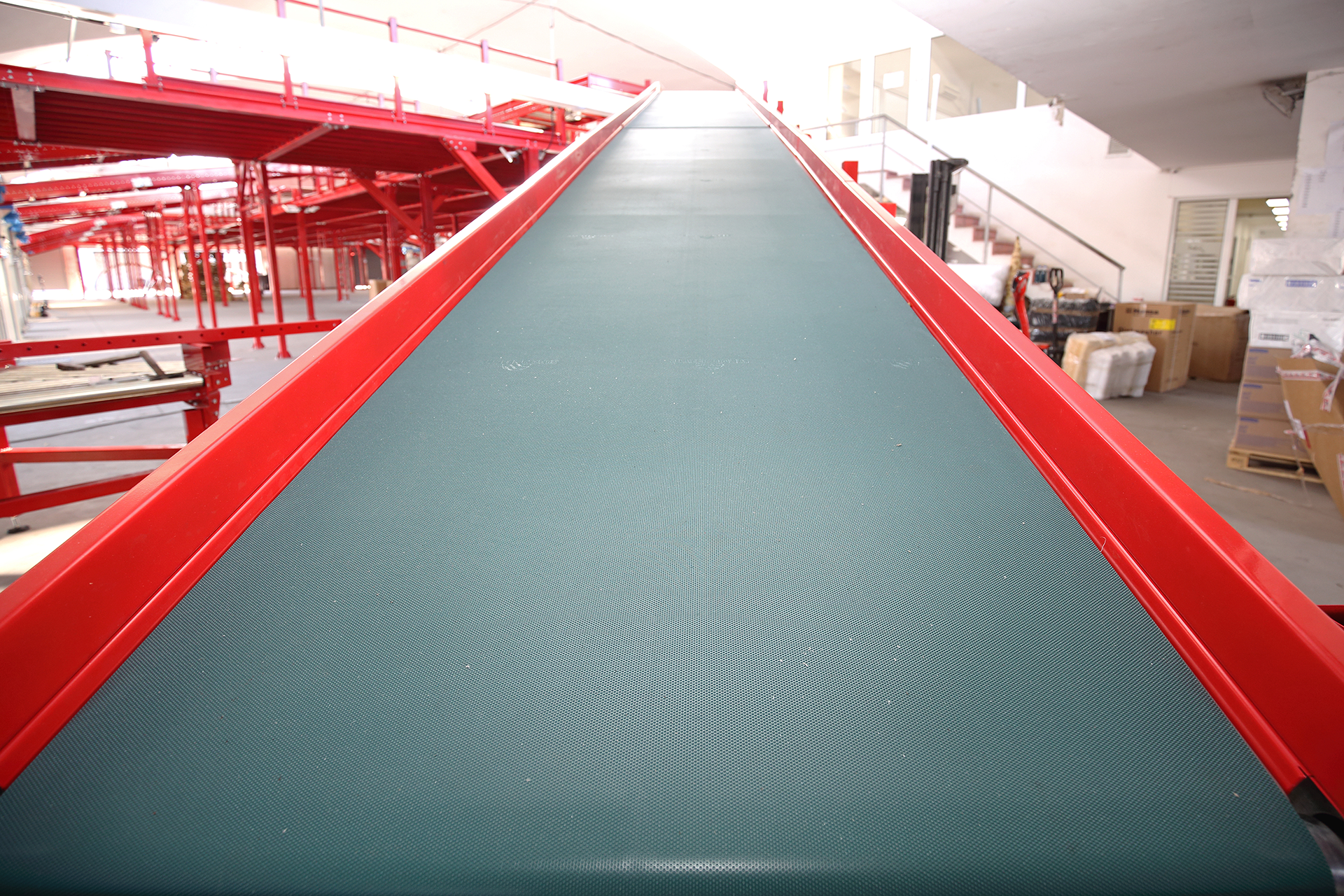

Chiorino belting solutions are developed to maximize the carrying and tracking capability according to the conveyance angle (inclined/ declined or horizontal) and the package loading, guaranteeing the parcel integrity, downtime minimization and the workers' safety.

Main processes:

  • Inclined/ Declined
  • Horizontal conveyor
  • Scanning

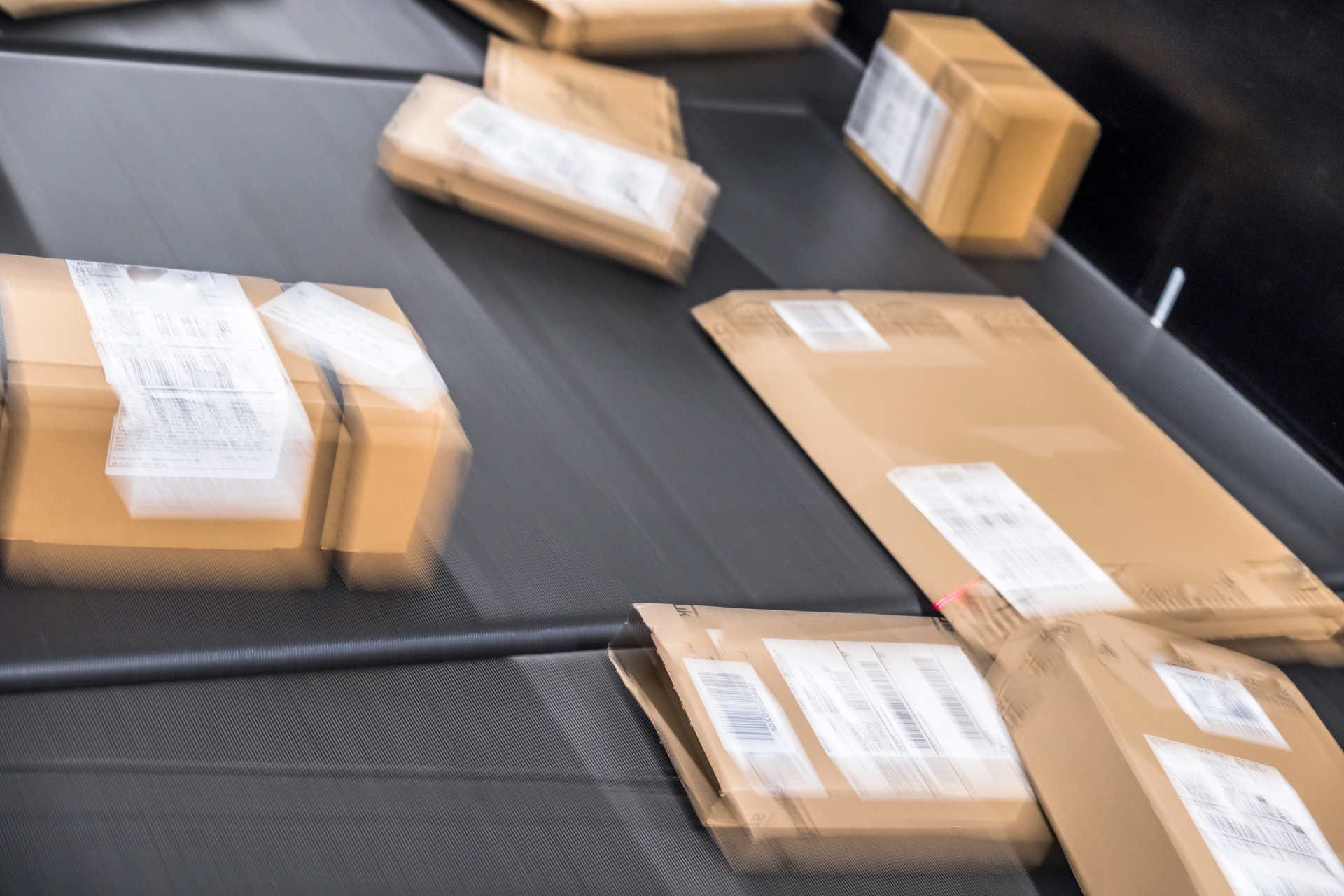

Chiorino manufactures a complete range of belting solutions that fully meet the requirements of this application, where an excellent coefficient of friction, tracking and carrying capabilities are critical to maximize throughput, optimized costs and energy consumption and protect the integrity of the packages.

Main processes:

  • Infeed
  • Singulation
  • Alignment

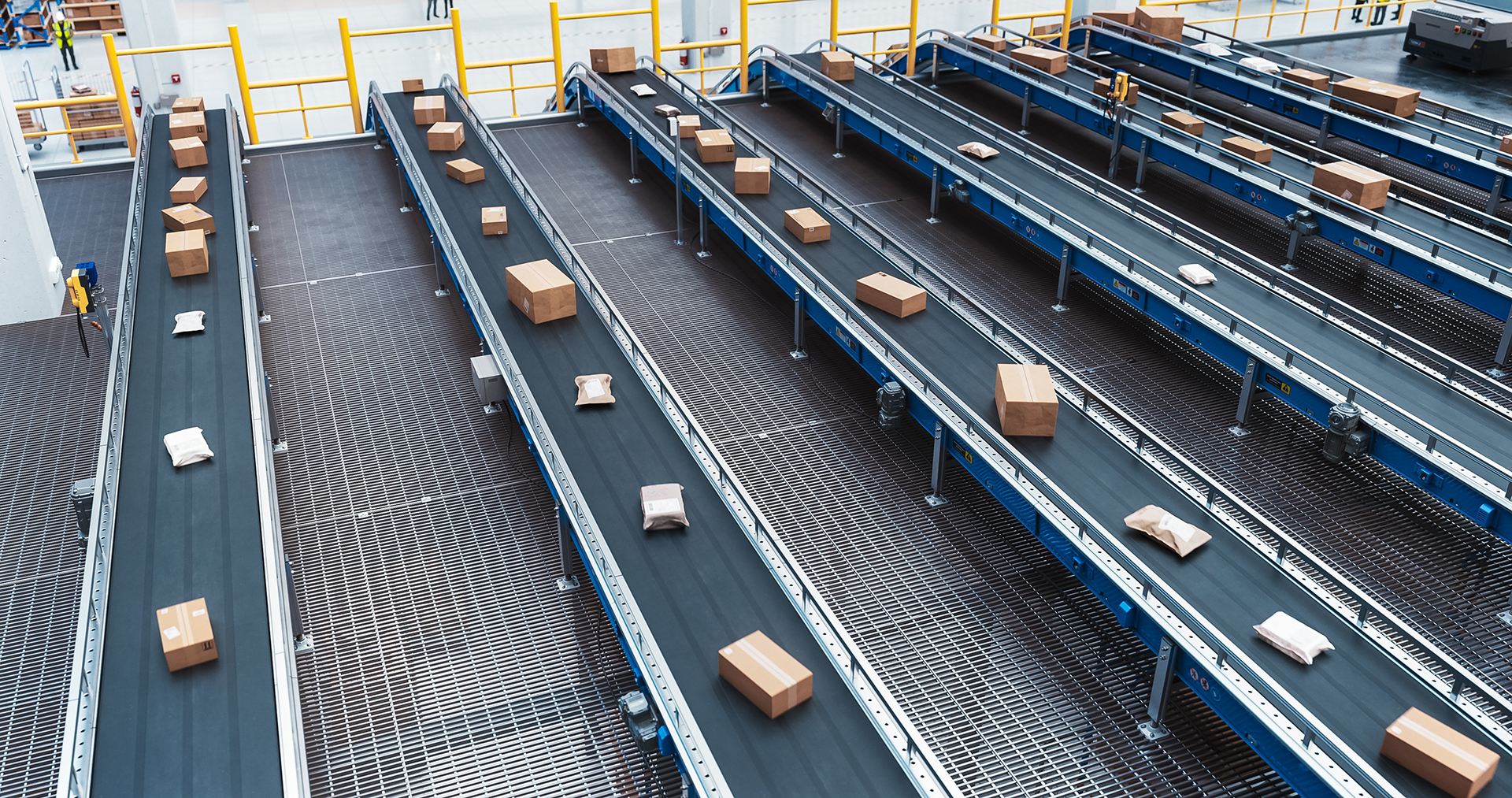

Chiorino manufactures premium energy-saving belting solutions for the conveyor of the packages, enhancing the efficiency and the reliability of the process, guaranteeing the parcel integrity and safeguarding costs, environmental noise and workers' safety.

Main processes:

  • Inclined/ Declined
  • Merger
  • Curve belts/ Power turns
  • Horizontal conveyor
  • Right angle transfer
  • Live rollers

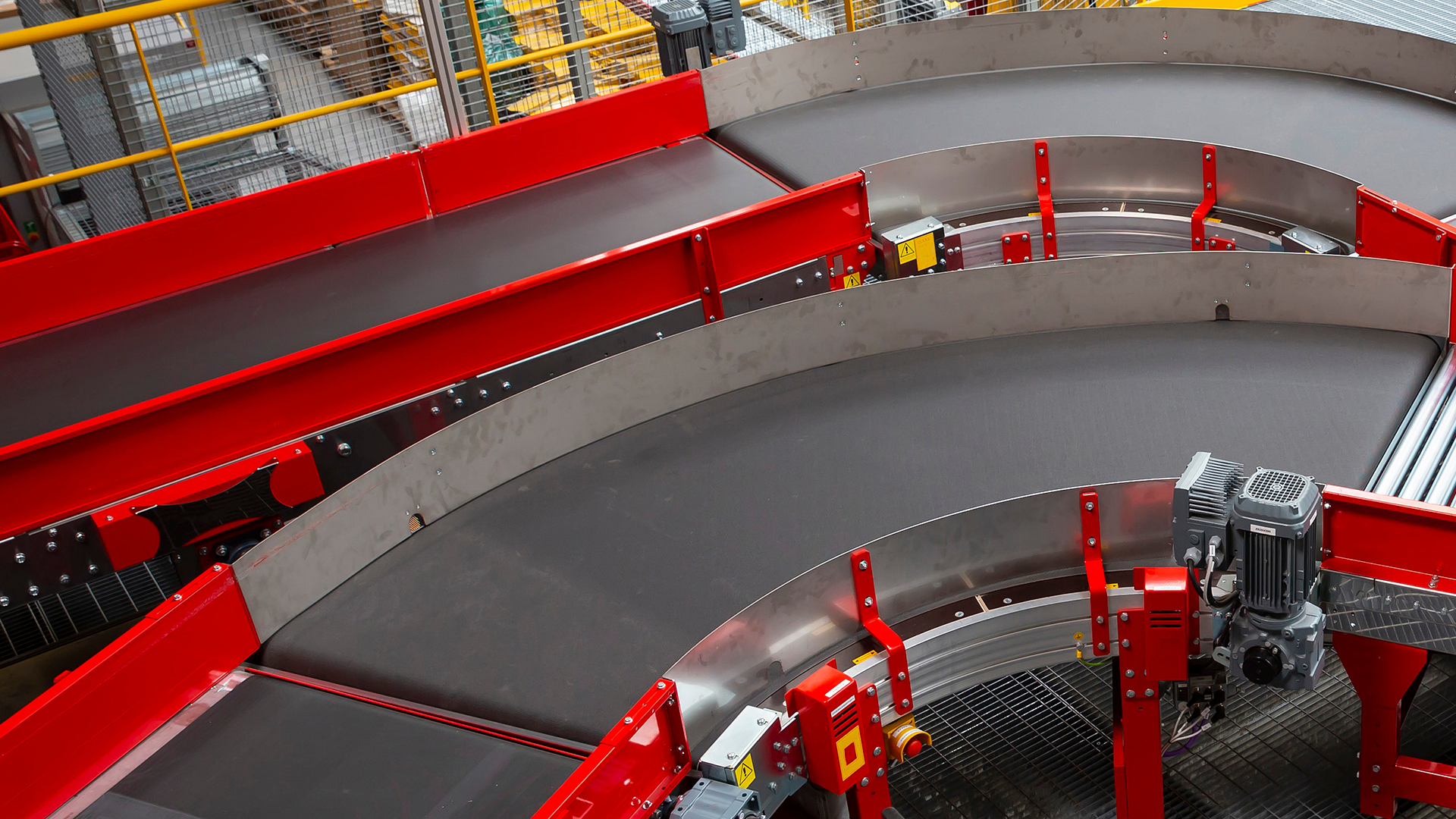

Chiorino manufactures a complete range of energy-saving belting solutions for metering and induction, where an excellent coefficient of friction, tracking and carrying capabilities are critical to maximize throughput, optimized costs and energy consumption and protect the integrity of the packages.

Main processes:

  • Metering
  • Induction

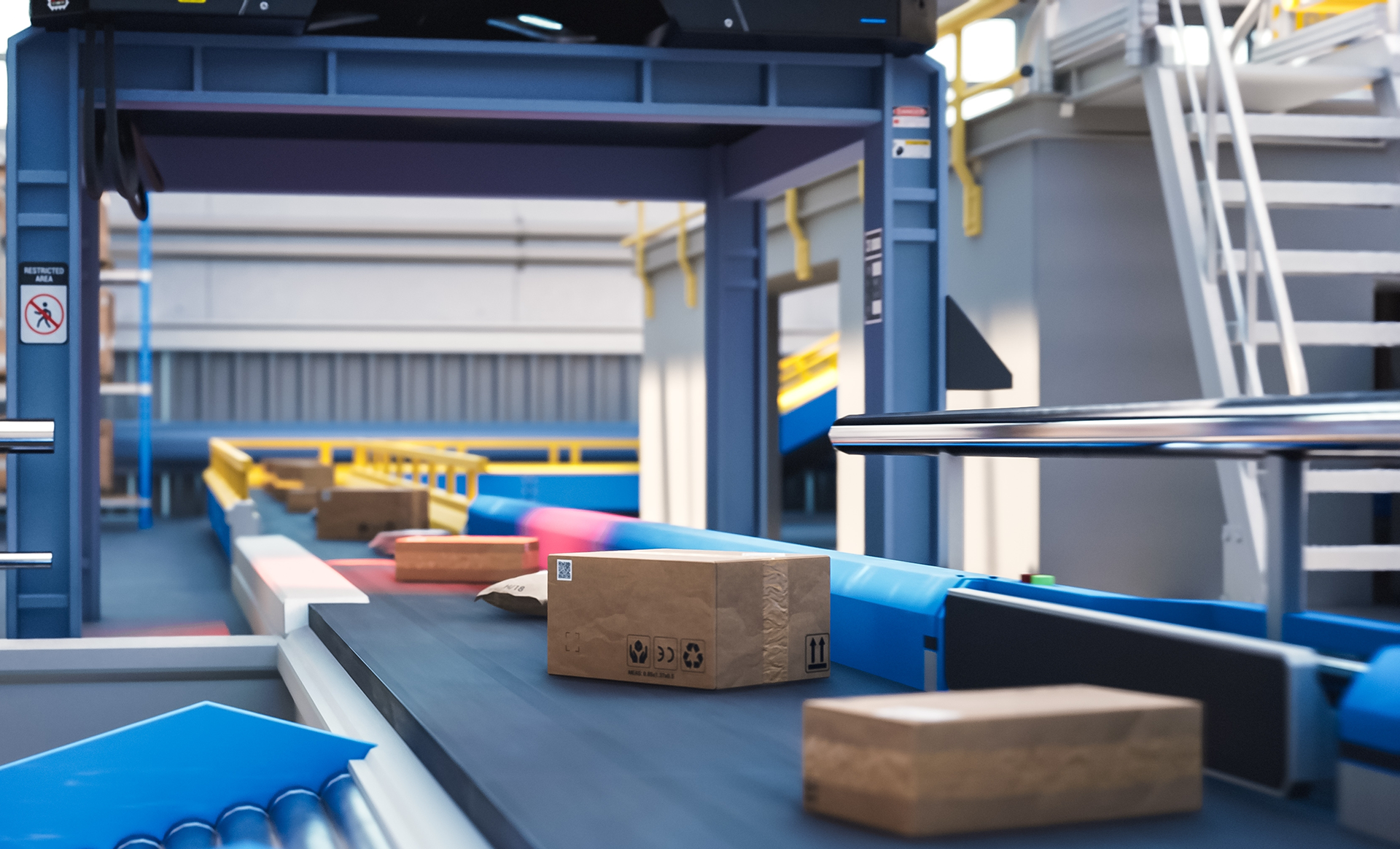

Chiorino manufactures premium energy-saving belting solutions for sorting, enhancing the efficiency and the reliability of the process, guaranteeing the parcel integrity and safeguarding costs and the environmental noise and workers' safety.

Main processes:

  • Cross belts
  • Scanning
  • Diverters
  • Narrow belts
  • Swivel wheels
  • Sliding shoe
  • Tilt tray
adding value to your process
Energy saving conveyor and process belts
view
High performing elastomers
view
Fast Joint thermoplastic machine tapes
view
fabrication and customization

Curve belts

Chiorino Marking Technology™

highlighted solutions

Flame retardant belts

our commitment

Sustainable
belting solutions

Chiorino develops solutions that support sustainability,
safeguard natural resources and reduce the environmental impact.

view more
our product selection
Type Material Thickness [mm] Traction 1% [N/mm] Code Pdf
1EL4 U0-U2 HP blue A Polyurethane (TPU) - HP® system 1.30 0.50 NA1647
1EL4 U0-U12 LG S Polyurethane (TPU) 2.50 0.50 NA1709
2M5 U0-U2 A Polyurethane (TPU) 1.20 6.00 NA581
2MT5 U0-U2 N FDA Polyurethane (TPU) 1.80 6.00 NA1030
2M5 U0-U2 PN N S A Polyurethane (TPU) 1.60 6.00 NA1072
2M5 U0-U2 N A XW-P Polyurethane (TPU) 1.30 6.00 NA1464
2M12 U0-U2 SP Polyurethane (TPU) 1.50 8.00 NA1289
2M12 U0-U3 R A Polyurethane (TPU) 1.70 12.00 NA803
2M12 U0-U3 R N A Polyurethane (TPU) 1.70 12.00 NA802
2M12 U0-V-U5 Polyurethane (TPU) 2.00 12.00 NA436
2M12 U0-V-U5 SP Polyurethane (TPU) 2.10 12.00 NA1346
3M18 U0-V-U10 SP Polyurethane (TPU) 3.70 18.00 NA1334
1EL4 U0-V5 RT N PVC 35 Sh.A (±5) 1.70 0.50 NA1634
1M6 U0-V5 N PVC 70 Sh.A (±5) 1.00 6.00 NA44
2MT5 U0-V3 N PVC 70 Sh.A (±5) 1.80 6.00 NA49
2MT5 U0-V5 RT N PVC 45 Sh.A (±5) 2.10 6.00 NA1283
2M5 U0-V5 PN N PVC 40 Sh.A (±5) 1.60 6.00 NA1354
2M8 U0-V5 A PVC 65 Sh.A (±5) 2.00 8.00 NA30
2M8 U0-V17 GP PVC 45 Sh.A (±5) 5.20 8.00 NA32
2M10 U0-V10 PVC 65 Sh.A (±5) 2.80 10.00 NA582
2M12 U0-V-U0 GR Fabric with polyurethane (TPU) impregnation 1.70 12.00 NA394
2T12 U0-V0 Fabric with PVC impregnation 2.50 12.00 NA149
2M12 U0-V-U0 N LF Fabric with polyurethane (TPU) impregnation 2.50 12.00 NA1614
2M12 U0-V3 N PVC 70 Sh.A (±5) 1.90 12.00 NA46
2M12 U0-V7 LG PVC 45 Sh.A (±5) 2.40 12.00 NA401
2M12 U0-V7 LG N PVC 35 Sh.A (±5) 2.70 12.00 NA1458
2M12 U0-V8 RT PVC 45 Sh.A (±5) 2.30 12.00 NA33
2M12 U0-V10 A PVC 65 Sh.A (±5) 2.50 12.00 NA34
2T12 U0-V10 PVC 65 Sh.A (±5) 2.50 12.00 NA40
2M12 U0-V10 RT PVC 65 Sh.A (±5) 2.60 12.00 NA258
2M12 U0-V10 RT N PVC 35 Sh.A (±5) 2.70 12.00 NA1697
2M12 U0-V15 GPL N PVC 45 Sh.A (±5) 3.80 12.00 NA242
2M12 U0-V20 GP PVC 45 Sh.A (±5) 5.50 12.00 NA35
3T18 U0-V0 Fabric with PVC impregnation 3.70 18.00 NA73
3M18 U0-V15 A PVC 65 Sh.A (±5) 4.20 18.00 NA76
3T18 U0-V15 PVC 65 Sh.A (±5) 4.20 18.00 NA42
1EL4 U0-V3 FR Polyvinyl chloride (PVC) 1.40 0.50 NA2624
1EL4 U0-V10 PN FR PVC 45 Sh.A (±5) 2.20 0.50 NA1635
1EL4 U0-V10 LG FR PVC 45 Sh.A (±5) 2.20 0.50 NA1640
1M12 U0-V5 PN FR PVC 40 Sh.A (±5) 1.80 8.00 NA867
1M12 U0-V5 PN FR PVC 45 Sh.A (±5) 1.80 12.00 NA1541
2M5 U0-V5 PN FR PVC 45 Sh.A (±5) 1.60 5.00 NA1671
2M5 U0-V5 PN FR PVC 40 Sh.A (±5) 1.90 6.00 NA934
2M12 U0-V-U0 FR Fabric with polyurethane (TPU) impregnation 2.50 12.00 NA795
2M12 U0-V-U0 FR Fabric with polyurethane (TPU) impregnation 2.50 12.00 NA1533
2M12 U0-V5 FR PVC 70 Sh.A (±5) 2.20 12.00 NA1070
2M12 U0-V5 FR PVC 80 Sh.A (±5) 2.20 12.00 NA1466
2M12 U0-V7 LG FR PVC 45 Sh.A (±5) 3.00 12.00 NA903
2M12 U0-V7 LG FR PVC 45 Sh.A (±5) 2.70 12.00 NA1522
2M12 U0-V10 RT FR PVC 45 Sh.A (±5) 2.70 12.00 NA60
2T12 U0-V10 FM FR PVC 70 Sh.A (±5) 2.30 12.00 NA1210
2T12 U0-V10 FM FR PVC 75 Sh.A (±5) 2.30 12.00 NA1465
2M12 U0-V10 RT FR PVC 40 Sh.A (±5) 2.70 12.00 NA1557
2M12 U0-V20 FB FR PVC 45 Sh.A (±5) 4.60 12.00 NA62
2M12 U0-V20 GP FR PVC 45 Sh.A (±5) 5.50 12.00 NA61
2M12 U0-V20 FB FR PVC 60 Sh.A (±5) 4.60 12.00 NA1556
2M12 U0-V20 GP FR PVC 60 Sh.A (±5) 5.50 12.00 NA1555
2M12 U0-V30 RL FR PVC 35 Sh.A (±5) 8.50 12.00 NA520
1M6 U0-V10 LG N e+ PVC 35 Sh.A (±5) 1.60 6.00 NA1638
2M12 U0-V-U0 e+ Fabric with polyurethane (TPU) impregnation 1.70 12.00 NA1578
2M12 U0-V-U0 FR e+ Fabric with polyurethane (TPU) impregnation 2.50 12.00 NA1617
2M12 U0-V3 FR e+ PVC 70 Sh.A (±5) 3.00 12.00 NA1554
2M12 U0-V5 FR e+ PVC 70 Sh.A (±5) 2.30 12.00 NA1575
2M12 U0-V3 N e+ PVC 70 Sh.A (±5) 1.90 12.00 NA1579
2M12 U0-V7 LG N e+ PVC 45 Sh.A (±5) 2.70 12.00 NA1580
2M12 U0-V7 LG FR e+ PVC 45 Sh.A (±5) 2.70 12.00 NA1592
2M8 U0-U-G10TP LG Thermoplastic elastomer 2.80 8.00 NA998
SILON 40 HC Non-woven polyester (PET) 4.00 10.00 NA305
SILON 60 HC Non-woven polyester (PET) 5.50 10.00 NA222
SILON 60 NA Non-woven polyester (PET) 5.50 10.00 NA223
Type Material Thickness [mm] Traction Pdf
T60/30A Synthetic elastomer 3.00 60.0
