Sidewalls

Sidewalls

Chiorino manufactures a wide range of high-quality belting accessories, which add value to the main conveyor and processing systems and are customized for enhancing their efficiency, service life and reliability in certain industrial applications.

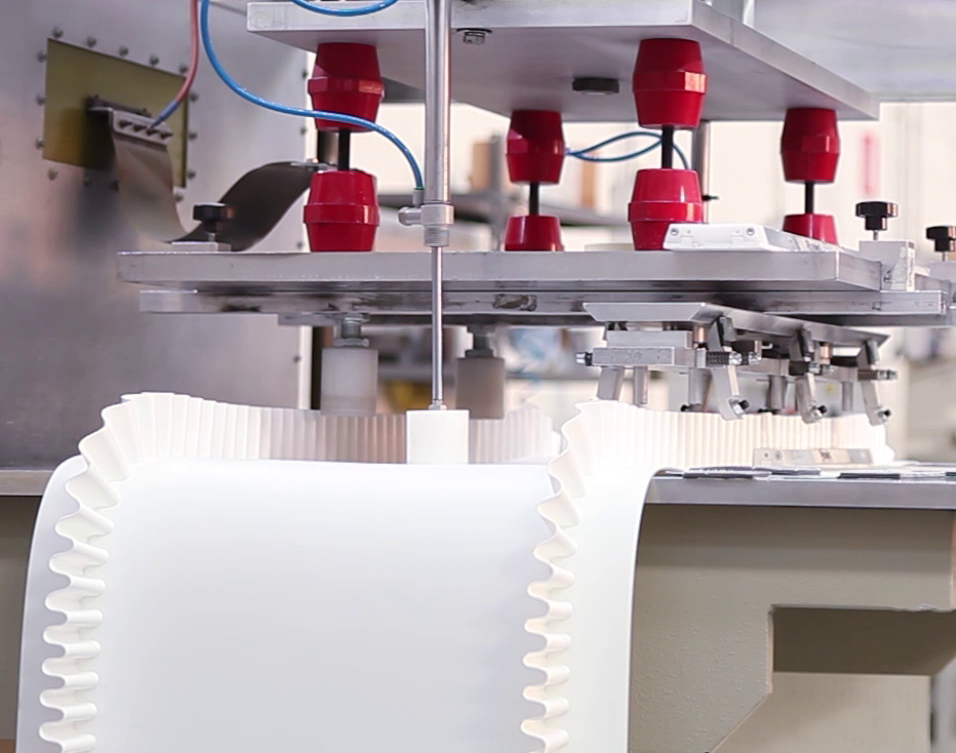

Chiorino's extensive range of sidewalls are provided in different materials, shapes, dimensions and colours, fitting specific requirements of the customers.

Chiorino’s guides and profiles can be manufactured with various materials and customized according to specific customer's requirements.

Chiorino’s sidewalls are certified to offer total safety and risk minimization, in compliance with the strictest European and international regulations.

adding value to your process
our product selection
Code Category Material Colour Base [mm] Type Technical Datasheet
ES848 C-U Polyurethane (TPU) Dark blue 22 C-U 10/20 blue DET
ES849 C-U Polyurethane (TPU) Dark blue 22 C-U 10/30 blue DET
ES850 C-U Polyurethane (TPU) Dark blue 22 C-U 10/40 blue DET
ES851 C-U Polyurethane (TPU) Dark blue 22 C-U 10/50 blue DET
ES852 C-U Polyurethane (TPU) Dark blue 42 C-U 20/60 blue DET
ES853 C-U Polyurethane (TPU) Dark blue 42 C-U 20/80 blue DET
ES188 C-U Polyurethane (TPU) White 22 C-U 10/20 W
ES189 C-U Polyurethane (TPU) Green 22 C-U 10/30
ES190 C-U Polyurethane (TPU) White 22 C-U 10/30 W
ES191 C-U Polyurethane (TPU) Green 22 C-U 10/40
ES192 C-U Polyurethane (TPU) White 22 C-U 10/40 W
ES193 C-U Polyurethane (TPU) Green 22 C-U 10/50
ES194 C-U Polyurethane (TPU) White 22 C-U 10/50 W
ES195 C-U Polyurethane (TPU) Green 42 C-U 20/60
ES196 C-U Polyurethane (TPU) White 42 C-U 20/60 W
ES197 C-U Polyurethane (TPU) Green 42 C-U 20/80
ES198 C-U Polyurethane (TPU) White 42 C-U 20/80 W
ES187 C-U Polyurethane (TPU) Green 22 C-U 10/20
ES702 C-U Polyurethane (TPU) - HP® system White 22 C-U 10/30 HP W
ES703 C-U Polyurethane (TPU) - HP® system White 22 C-U 10/40 HP W
ES704 C-U Polyurethane (TPU) - HP® system White 22 C-U 10/50 HP W
ES705 C-U Polyurethane (TPU) - HP® system White 42 C-U 20/60 HP W
ES706 C-U Polyurethane (TPU) - HP® system White 42 C-U 20/80 HP W
ES709 C-U Polyurethane (TPU) - HP® system HP® blue 22 C-U 10/40 HP blue
ES710 C-U Polyurethane (TPU) - HP® system HP® blue 22 C-U 10/50 HP blue
ES711 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/60 HP blue
ES763 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/40 HP Compact blue
ES764 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/60 HP Compact blue
ES762 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/50 HP Compact blue
ES794 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/100 HP Compact blue
ES795 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/120 HP Compact blue
ES701 C-U Polyurethane (TPU) - HP® system White 22 C-U 10/20 HP W
ES707 C-U Polyurethane (TPU) - HP® system HP® blue 22 C-U 10/20 HP blue
ES708 C-U Polyurethane (TPU) - HP® system HP® blue 22 C-U 10/30 HP blue
ES712 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/80 HP blue
ES765 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/80 HP Compact blue
ES987 C-U Polyurethane (TPU) - HP® system HP® blue 22 C-U 10/20 HP blue AM
ES988 C-U Polyurethane (TPU) - HP® system HP® blue 22 C-U 10/30 HP blue AM
ES989 C-U Polyurethane (TPU) - HP® system HP® blue 22 C-U 10/40 HP blue AM
ES990 C-U Polyurethane (TPU) - HP® system HP® blue 22 C-U 10/50 HP blue AM
ES991 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/60 HP blue AM
ES992 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/80 HP blue AM
ES983 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/40 HP Compact blue AM
ES984 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/50 HP Compact blue AM
ES985 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/60 HP Compact blue AM
ES982 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/80 HP Compact blue AM
ES986 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/100 HP Compact blue AM
ES1017 C-U Polyurethane (TPU) - HP® system HP® blue 42 C-U 20/120 HP Compact blue AM
ES686 CV-T Polyvinyl chloride (PVC) Green 22 CV-T 10/20
ES687 CV-T Polyvinyl chloride (PVC) White 22 CV-T 10/20 W
ES688 CV-T Polyvinyl chloride (PVC) Green 22 CV-T 10/30
ES689 CV-T Polyvinyl chloride (PVC) White 22 CV-T 10/30 W
ES690 CV-T Polyvinyl chloride (PVC) Green 22 CV-T 10/40
ES691 CV-T Polyvinyl chloride (PVC) White 22 CV-T 10/40 W
ES692 CV-T Polyvinyl chloride (PVC) Green 22 CV-T 10/50
ES693 CV-T Polyvinyl chloride (PVC) White 22 CV-T 10/50 W
ES694 CV-T Polyvinyl chloride (PVC) Green 42 CV-T 20/60
ES695 CV-T Polyvinyl chloride (PVC) White 42 CV-T 20/60 W
ES696 CV-T Polyvinyl chloride (PVC) Green 42 CV-T 20/80
ES697 CV-T Polyvinyl chloride (PVC) White 42 CV-T 20/80 W

The technical data are valid under normal environmental conditions and are subject to change without notice.

Code Category Type Declarations of compliance
ES848 C-U C-U 10/20 blue DET REACH EU 1935 FDA HALAL
ES849 C-U C-U 10/30 blue DET REACH EU 1935 FDA HALAL
ES850 C-U C-U 10/40 blue DET REACH EU 1935 FDA HALAL
ES851 C-U C-U 10/50 blue DET REACH EU 1935 FDA HALAL
ES852 C-U C-U 20/60 blue DET REACH EU 1935 FDA HALAL
ES853 C-U C-U 20/80 blue DET REACH EU 1935 FDA HALAL
ES188 C-U C-U 10/20 W REACH FDA
ES189 C-U C-U 10/30 REACH FDA
ES190 C-U C-U 10/30 W REACH FDA
ES191 C-U C-U 10/40 REACH FDA
ES192 C-U C-U 10/40 W REACH FDA
ES193 C-U C-U 10/50 REACH FDA
ES194 C-U C-U 10/50 W REACH FDA
ES195 C-U C-U 20/60 REACH FDA
ES196 C-U C-U 20/60 W REACH FDA
ES197 C-U C-U 20/80 REACH FDA
ES198 C-U C-U 20/80 W REACH FDA
ES187 C-U C-U 10/20 REACH FDA
ES702 C-U C-U 10/30 HP W REACH EU 1935 FDA HALAL
ES703 C-U C-U 10/40 HP W REACH EU 1935 FDA HALAL
ES704 C-U C-U 10/50 HP W REACH EU 1935 FDA HALAL
ES705 C-U C-U 20/60 HP W REACH EU 1935 FDA HALAL
ES706 C-U C-U 20/80 HP W REACH EU 1935 FDA HALAL
ES709 C-U C-U 10/40 HP blue REACH EU 1935 FDA HALAL
ES710 C-U C-U 10/50 HP blue REACH EU 1935 FDA HALAL
ES711 C-U C-U 20/60 HP blue REACH EU 1935 FDA HALAL
ES763 C-U C-U 20/40 HP Compact blue REACH EU 1935 FDA
ES764 C-U C-U 20/60 HP Compact blue REACH EU 1935 FDA HALAL
ES762 C-U C-U 20/50 HP Compact blue REACH EU 1935 FDA HALAL
ES794 C-U C-U 20/100 HP Compact blue REACH EU 1935 FDA
ES795 C-U C-U 20/120 HP Compact blue REACH EU 1935 FDA HALAL
ES701 C-U C-U 10/20 HP W REACH EU 1935 FDA HALAL
ES707 C-U C-U 10/20 HP blue REACH EU 1935 FDA HALAL
ES708 C-U C-U 10/30 HP blue REACH EU 1935 FDA HALAL
ES712 C-U C-U 20/80 HP blue REACH EU 1935 FDA HALAL
ES765 C-U C-U 20/80 HP Compact blue REACH EU 1935 FDA HALAL
ES987 C-U C-U 10/20 HP blue AM REACH EU 1935 FDA
ES988 C-U C-U 10/30 HP blue AM REACH EU 1935 FDA
ES989 C-U C-U 10/40 HP blue AM REACH EU 1935 FDA
ES990 C-U C-U 10/50 HP blue AM REACH EU 1935 FDA
ES991 C-U C-U 20/60 HP blue AM REACH EU 1935 FDA
ES992 C-U C-U 20/80 HP blue AM REACH EU 1935 FDA
ES983 C-U C-U 20/40 HP Compact blue AM REACH EU 1935 FDA
ES984 C-U C-U 20/50 HP Compact blue AM REACH EU 1935 FDA
ES985 C-U C-U 20/60 HP Compact blue AM REACH EU 1935 FDA
ES982 C-U C-U 20/80 HP Compact blue AM REACH EU 1935 FDA
ES986 C-U C-U 20/100 HP Compact blue AM REACH EU 1935 FDA
ES1017 C-U C-U 20/120 HP Compact blue AM REACH EU 1935 FDA
ES686 CV-T CV-T 10/20 REACH FDA
ES687 CV-T CV-T 10/20 W REACH FDA
ES688 CV-T CV-T 10/30 REACH FDA
ES689 CV-T CV-T 10/30 W REACH FDA
ES690 CV-T CV-T 10/40 REACH FDA
ES691 CV-T CV-T 10/40 W REACH FDA
ES692 CV-T CV-T 10/50 REACH FDA
ES693 CV-T CV-T 10/50 W REACH FDA
ES694 CV-T CV-T 20/60 REACH FDA
ES695 CV-T CV-T 20/60 W REACH FDA
ES696 CV-T CV-T 20/80 REACH FDA
ES697 CV-T CV-T 20/80 W REACH FDA
